Pressure Gauges:
Weatherproof
Bourdon Type Pressure Gauges: Weatherproof gauges are commonly
used in Chemical Processing, Petroleum Refinery, Petrochemical,
Fertilizer, Thermal & Nuclear Power Generating industry & Process
Applications.
Diaphragm Sealed Pressure Gauges: The gauges are designed
to measure the corrosive fluids pressure, where suitable material for
bourdon tube is not available. The diaphragm assembly withstand various
corrosive actions encountered & seals the bourdon tube from the process
fluid. The displacement of the liquid filled in the bourdon tube, through
movement of the diaphragm, transmits the process pressure to the gauge.
Electrical Contact Pressure Gauges: Single/ Double snap
action Magnetic Electrical Contact Gauges serve for the measurement &
control of pressure by switching 'On & Off' electrical equipments. thus
eliminates the need of separate switches for equipments such as pumps,
motors, turbines, blowers for audio/ visual alarms for signaling
irregularities.
Low Pressure Diaphragm & Capsule gauges: These gauges are
suitable for measuring pressure of all kind of fluid & gaseous medium. The
measuring element is a sensitive corrugated diaphragm fixed between two
flanges. For slurry & viscous liquids flanged connections can also be
incorporated. these gauge are designed for non-corrosive & non-aggressive
application.
Test & Master Pressure Gauges: Master Gauges are designed
gore use as a reference gauge for recalibrating general service gauges,
transmitters & other pressure operated instruments. These gauges are easy
to carry for field use & for spot inspections. To make reading easier &
faster each pressure gauge is provided with readable dial. Reading error
caused by parallax is eliminated by aligning the knife edge tip pointer
with its reflection in the mirror band on the gauge.
Utility Pressure Gauges: These gauges are specially
designed for valve positioners, air filters & regulators, small boilers,
fire extinguishers, pharmaceutical & food processing equipments, pumps,
compressors, hydraulic & pneumatic systems, ammonia & refrigeration
services.

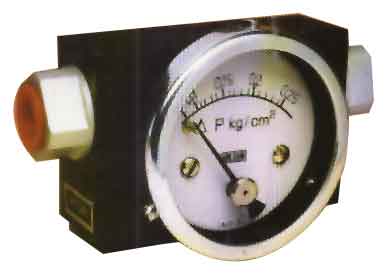

Differential Pressure Gauges: These gauges are cost
effective & compact & easy to use. they are available in wide differential
pressure range. the gauges are having isolated indicating mechanism from
pressure chamber. These gauges are widely used by filter manufacturers,
hydraulic systems, water treatment plants, chemical plants, natural gas
processing, heat ex-changers, gasoline/ diesel engine filters, pumps &
valves.
|
